Features:

• Easy-to-use interface that allows you to configure the sampling rate, tare value, damping, and auto-off time interval as well as reset the min/max pressure
• View the remaining battery life
• Select from 21 different standard engineering units, including bar, in H2O, kPa, MPa, and psi

Specifications:

• Pressure Connection - 1/4 in NPT Male
• Housing - Cast ZNAL
• Display - 5-1/2 digits, 16.53 mm (0.65") high 20-segment bar graph, 0 to 100%
• Range - 0 to 5000 psi, 0 to 35 MPa
• Resolution - 0.1 psi, 0.01 bar
• Uncertainty (k=2) - Positive Pressure: ±0.02% FS
• Vacuum - ±0.05% FS
• Burst Pressure - 10 000 psi, 70 MPa
• Media Compatibility - Note 3
• Power Source - 3 x AA Alkaline Batteries
• Battery Life - 75 hours

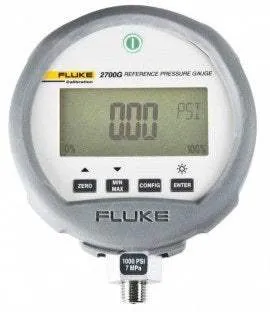

Rugged and easy to use. Ideal for a wide variety of applications and offers best in class measurement performance suitable for calibrating pressure measurement devices such as pressure gauges, transmitters, transducers, and switches.
