Features:

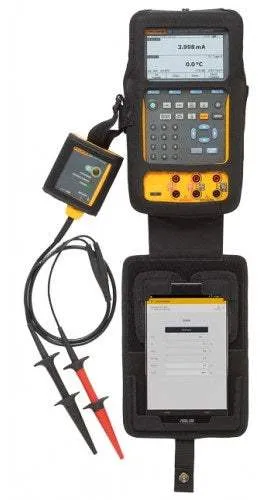

• Full-featured documenting process calibrator with HART communication for calibrating and troubleshooting HART instrumentation
• Measures volts, mA,TDs, thermocouples, frequency, and ohms to test sensors, transmitters and more
• Sources/simulates volts, mA, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters
• Powers transmitters during test using loop supply with simultaneous mA measurement
• Handles fast pulsed rtd transmitters and PLCs, with pulses as short as 1 ms
• Creates and runs automated as-found/as-left procedures to satisfy quality programs or regulations, and records and documents results
• Holds up to a full week of downloaded procedures and calibration results
• Uses many features like autostep, custom units, user-entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay and more
• Provides easy-to-use multi-lingual interface
• Features a bright white dual display for reading both sourced and measured parameters simultaneously
• Offers compatibility with many asset management software packages
• Plant Maintenance Engineer
• Electric Engineer
• Senior Engineer
• Application Engineer
• Control Technician
• Instrumentation Specialist
• Automation Engineers

Accessories:

• Documenting Process Calibrator with HART Communication
• NIST-Traceable Calibration Report and Data
• DPCTrack 2™ Sample Software
• 3 x Test Probes Sets with Three Sets of "Extended Tooth" Alligator Clips
• 2 x Hook Clips
• USB Communication Cable
• HART Communications Cable
• Carrying Case
• Battery Charger
• Battery Pack
• Instruction Manual
• Three Year Warranty

A powerful, and easy-to-use bundle that offers full HART support for calibration, troubleshooting, and commissioning. Additionally, it automatically documents test results and supports multiple software packages, including DPCTrack2 and ProCalV5, and comes equipped with a rugged case.
