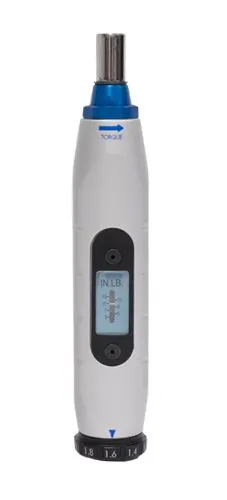

Product Details
＋
- Automatically resets for next fastener when torque is reached
- Manufactured to meet or exceed the accuracy and repeatability requirements of ISO 6789:2003 and ASME-B107.14-2004
- Operator adjusts torque using the dial on the end of the tool
- Easy to read digital window scale
- Ideal for applications that require more than one torque value
Specifications
- Product Group: Assembly
- Model No.: ASG-A15
- Torque: 3.0 to 15 lbf·in
- Drive Size: 1/4" Hex
- Width: 1.1"
- Length: 6.3" (160 mm)
- Weight: 0.23 kg
- ESD-Safe: No
- Manual or Powered: Manual
- Diameter: 1.1" (28 mm)
- Accuracy: ± 6% of indicated value clockwise direction 20-100% of full scale
- Handle Type: Metal
- Warranty: 1 Year
