Product Details
＋

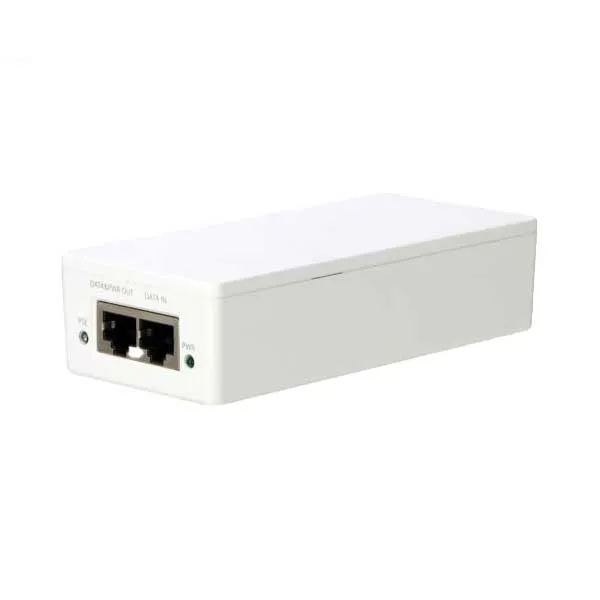

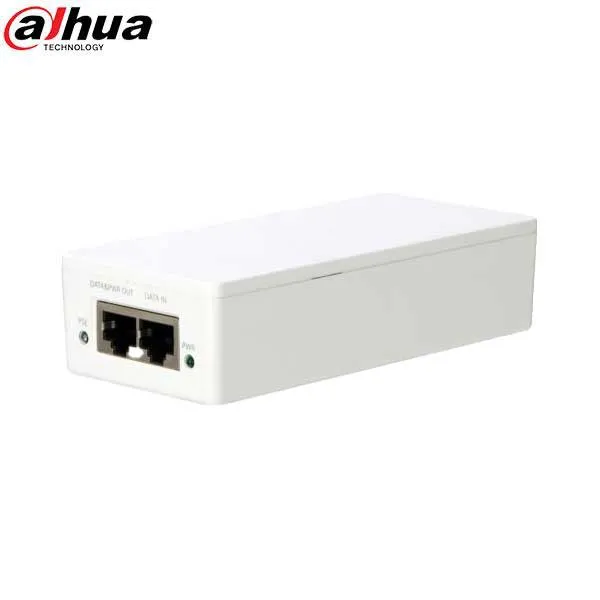

DH-TAM1GT1GT-30
The DH-TAM1GT1GT-30 PoE Midspan (or POE injector) is used to add POE capability to regular non-POE network links. Midspans can be used to upgrade existing LAN installations to POE, and provide a versatile solution where fewer POE ports are required. Designed to work in extreme temperature environments and in applications that experience lightning. The midspan offers a single PoE (802.3at) port with an internal power supply in a compact housing. The midspan carries both data and power along an Ethernet cable for easy installation of IP cameras, wireless access points, or a VOIP phone.
Features
- Supports IEEE802.3af and IEEE802.3at Standards
- Conforms to IEEE802.3, IEEE802.3u and IEEE802.3ab Standards
- Wide Temperature Range for Industrial Applications
- Call 1-800-878-6604 for Dealer Prices!
| Ethernet Ports | One (1) 10/100/1000 Base-T One (1) 10/100/1000 Base-T (PoE Power Supply) |
| PoE Features | Protocol: IEEE802.3af, IEEE802.3at Power Output: ≤ 30 W |
| LED Indicators | PSE: Green indicates the midspan is delivering power PWR: Green indicates the midspan is working properly |
| Power Requirements | 100 VAC to 240 VAC, 50/60 Hz |
| Dimensions | 5.21 in. x 2.36 in. x 1.30 in. |
| Certification | CE, FCC, UL |
