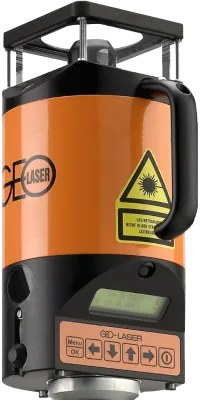

GEO-Laser IL-80 Fully Automatic Rotating Interior Laser Level
PRODUCT OVERVIEW
The automatic rotary laser IL-80L is an all-round laser for horizontal and vertical use capable of electronic self-levelling over three axes. Equipped with a beam split prism in the rotor head, it can also be used as a square or plumb laser. It emits a stationary or rotating laser beam, which turns into a light plane. Although it was specially developed for interior installation works, it can also be used for many other purposes.
FEATURES
-
Fully automatic
Automatic levelling and cut-out in case of low battery or jerky movements. -
Manual rotor adjustment
Easy operation for exact positioning of the laser beam, rotor fixing and plumbing down. -
Scan operation
Generates a limited, significantly brighter laser beam line. -
Automatic function can be switched off
Therefore inclination adjustment by points of reference possible. -
Special laser beam quality
Diode laser with visible thin beam, high-powered lens, high life expectancy and low power consumption -
Laser safety
Laser class 2, laser power < 1 mW. No special safety precautions necessary. The easy standard laser class. -
Lithium ion rechargeable battery
Operation up to 28 hours, makes the user independent of external power sources. Recharged in four hours. -
Increased safety
Control indicators with blinking warning system for levelling, operating status and low battery. -
User-friendly keyboard
Clear layout, functional, big keys. -
Robust metal housing
Plastic coated, swept and filled with nitrogen, 100 % watertight. -
Checking and adjustment
Easily possible at the building site as well. The device does not have to be opened for adjustment.
Quality Guarantee
Our lasers are the result of decades of experience in the research, development, and production of construction lasers. The design, the materials used, as well as our rigorous quality assurance process are guarantors of high functionality and a long service life. All our devices are designed and manufactured exclusively in Germany and are renowned worldwide for their perfection in terms of handling, precision, robustness, and quality.
SPECIFICATIONS
| Laser class | 2, <1mW (rotating beam & plumb beam) |
|---|---|
| Laser | diode laser, visible red, 635 nm |
| Laser range | up to 200 m |
| Beam diameter at laser | 5 mm at laser |
| Self-levelling range | ± 5 % |
| Permissible deviation | ± 0,005 % |
| Operating time | up to 28 hours |
| External power supply | 11 to 14 V DC with cable 0117.00 |
| Undervoltage cut-out | yes |
| Waterproof | to 3.5 m |
| Temperature range | - 10° C to 50° C |
| Weight | 3.4 kg |
| Guarantee | 24 month |
| Rotor speed | adjustable in steps: 0, 100, 300, 600, 800 rpm |
| Automatic function | horizontal and vertical |
| Automatic function can be switched off | yes |
| Adjustment | possible in the field without having to open the device |
