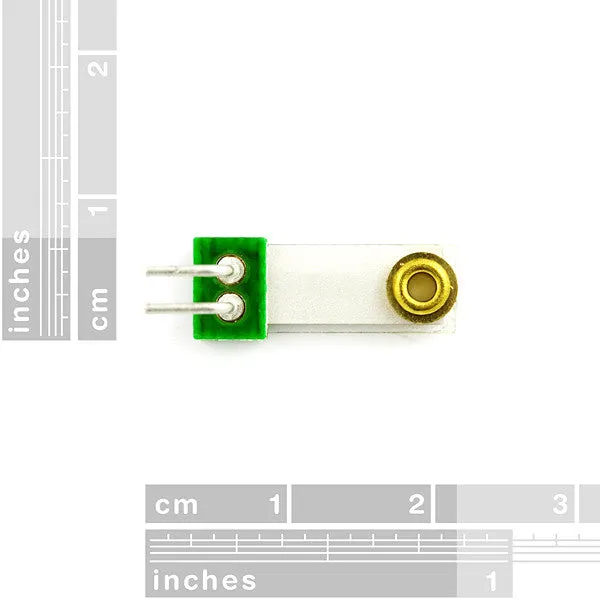

The Minisense 100 from Measurement Specialties is a low-cost cantilever-type vibration sensor loaded by a mass to offer high sensitivity at low frequencies. Useful for detecting vibration and ‘tap’ inputs from a user. A small AC and large voltage (up to /-90V) is created when the film moves back an forth. A simple resistor should get the voltage down to ADC levels. Can also be used for impact sensing or a flexible switch.

Comes with solder pins that allows for vertical mounting.

Features:

• Flexible PVDF Piezo Polymer Film
• Wide dynamic range
• Laminated for higher voltage output
• Breadboard friendly leads
