Product Details
＋

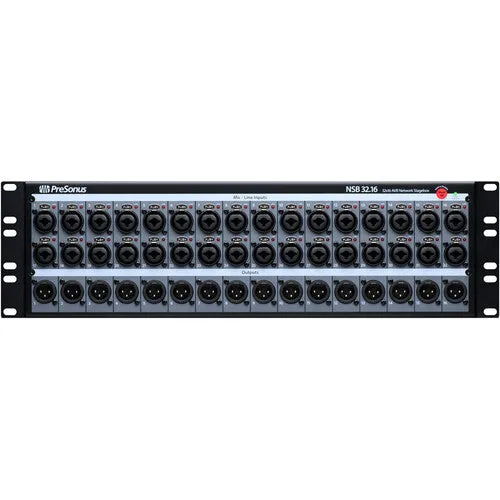

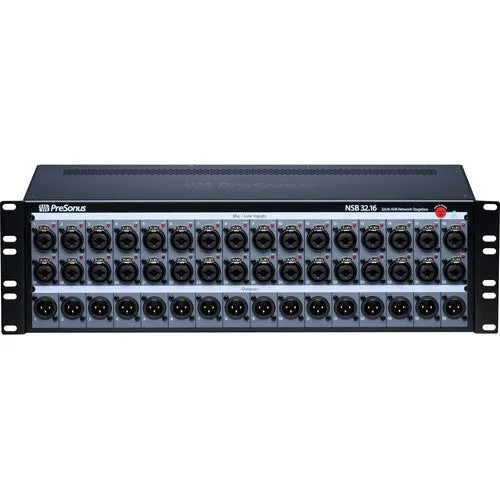

Designed to work seamlessly with a PreSonus StudioLive Series III mixer, the PreSonus NSB 32.16 stage box offers 32 locking combo mic/line inputs with remote-controlled XMAX preamps that include gain compensation for shared input scenarios, as well as 32 direct inputs via AVB. All inputs can be controlled from a StudioLive Series III console and from free PreSonus UC Surface software.

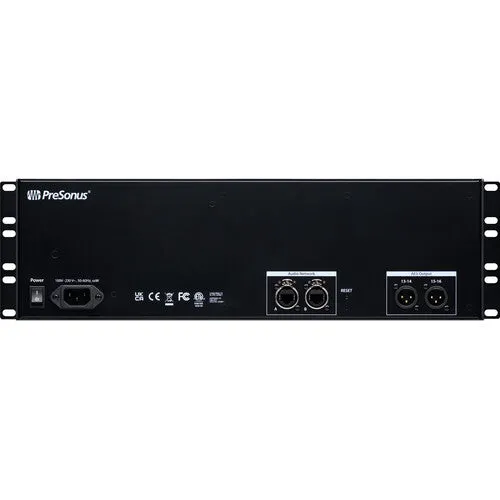

All 16 outputs employ locking XLR jacks, while the built-in 2-port AVB switch lets you daisy-chain multiple units. A pair of AES XLR outputs are available on the rear of the enclosure. The rugged 3 RU steel chassis features rack ears for easy installation into a rack case.
Features
- Rugged 3 RU 19" rack enclosure with multiposition rack ears for flexible installation
- 32 locking combo mic/line inputs and 16 XLR line outputs
- 32 remote-controllable XMAX preamps
- Gain compensation provides independent control from multiple mixers
- 16 locking XLR line outputs
- 2 Stereo AES3 digital outputs
- 2 AVB ports with locking XLR Ethernet jacks
- 64x16 AVB (32 direct input channels 32 gain-compensated input channels)
- Mute All button
- 48V indicators
- Easy to set up and has remote gain control available on StudioLive Series III mixers or with the free PreSonus UC Surface software
Specifications
General
| Compatibility | PreSonus StudioLive Series III |
Inputs / Outputs
| Audio I/O | 32 x Combo XLR-1/4" 3-Pin Line/Mic Input 16 x XLR 3-Pin Line Output 2 x XLR 3-Pin AES3 Output |
Power
| Power Source | AC Input (Included) |
| AC Input Power | 100 to 230 VAC, 50 / 60 Hz |
Physical
| Color | Black / Gray |
