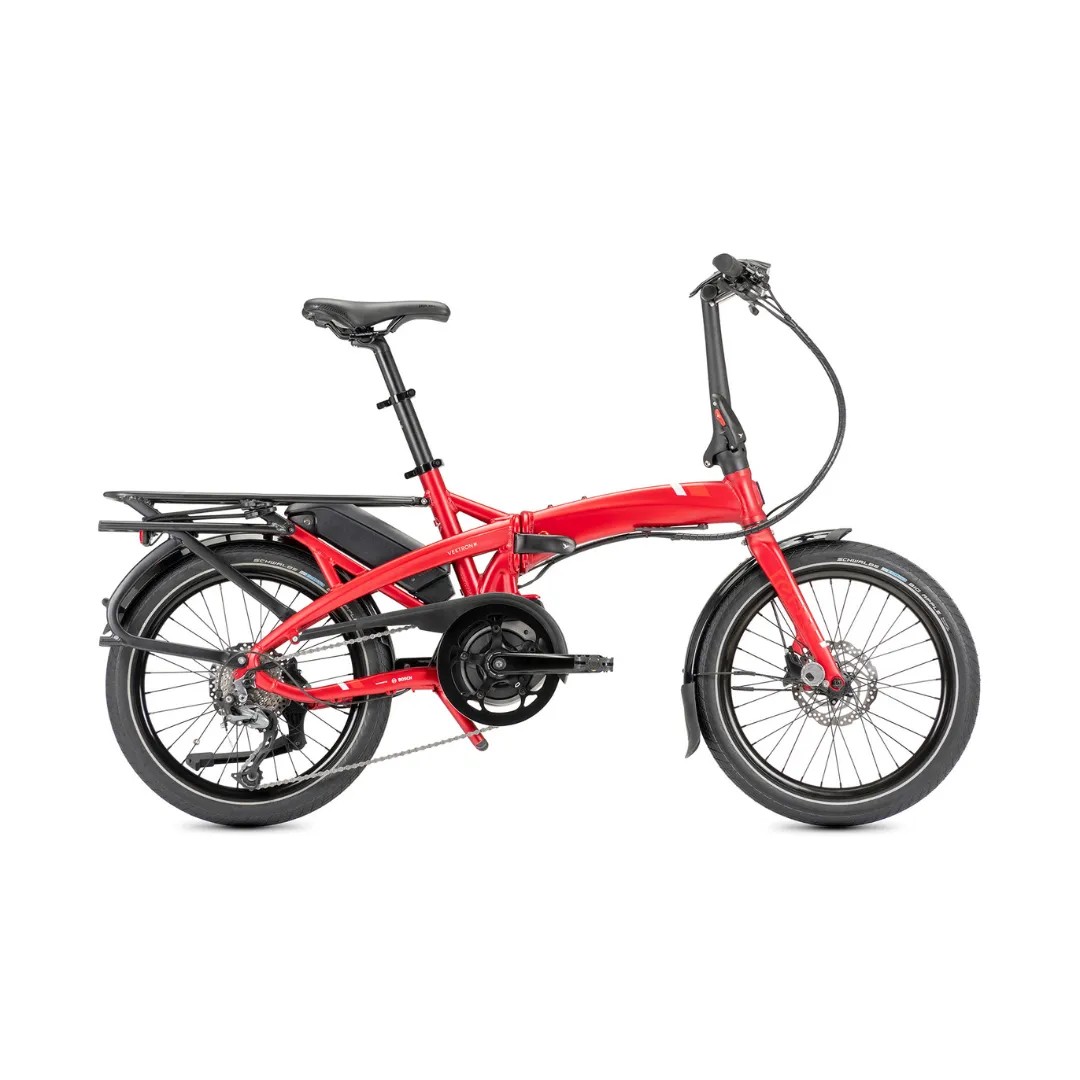

Ride it, Fold it, Go Further

The Vektron is a best-in-class electric bike that folds in 10 seconds to go on trains, in cars, and under desks. Shorten distances and flatten the hills on your commute, or put a couple of Vektrons in the trunk of your car on your next trip, so you can explore further.

Best in Class

In test after test, the Vektron is called the best folding ebike on the market. With an updated frame, upgraded Bosch motors, and a wide ecosystem of accessories to help you carry your stuff, the Vektron will easily turn a lot of your car trips into bike trips.

Ready to Roll

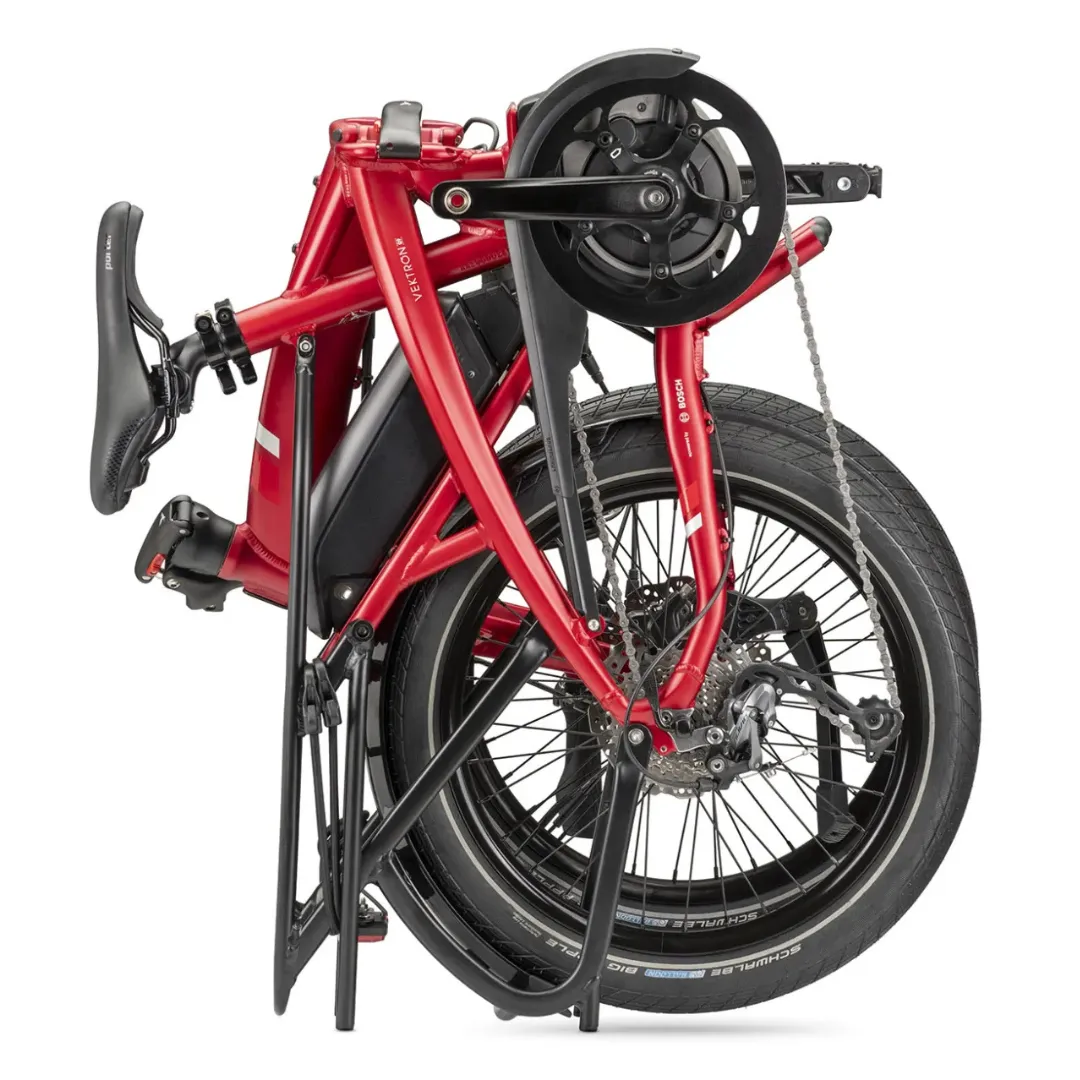

Once you fold your Vektron, it’s easy to roll it around. The new frame design also lets you keep the bike in vertical position when folded, so stopping and going is easier than ever.

Rides Better

There are other folding electric bikes but none ride better. The Vektron is stiff and stable for a truly solid ride - even when fully loaded. Take a test ride and feel the difference.

Kiddie Compatible

School runs have never been more fun! The frame-integrated Atlas V Rack is designed to fit a Thule Yepp Maxi or a Nexxt Maxi seat—no adapters needed.

TECHNOLOGY

UPDATES

New colors and updated styling
Upgraded to the Bosch Active Line Plus electric drivetrain for up to 270% assistance and 50 Nm of torque
Hydraulic disc brakes for all-weather stopping power
Updated frame with a reclining battery for a lower center of gravity and better ride
Frame passed strict European safety standards for pedal-assist e-bikes, having been certified as EN15194-compliant by EFBE Prüftechnik
Integrated Atlas V Rack works seamlessly with Thule Yepp Maxi and Nexxt Maxi child seats—no adapters needed
Resizes in seconds to fit riders 147 – 195 cm (4’10” – 6’5”) so a single bike can be shared by the family

SPECS

WHEEL SIZE: 20" wheels
SPEEDS: 1 x 9
WEIGHT: 21.9 kg (48.2 lb)
FOLDING SIZE: 41 x 86 x 68 cm (16.1" x 33.9" x 26.8")
FOLDING TIME: 10 sec
FRAME SIZES: One size
GEAR INCHES: 33" - 97" (2.65 - 7.72 m)
DISTANCE: SEATPOST TO HANDLEBAR: Min: 620 mm (24.4") Max: 690 mm (27.2")
DISTANCE: SADDLE TO PEDAL: Min: 670 mm (26.4") Max: 1100 mm (43.3")
SUGGESTED RIDER HEIGHT: 147 - 195 cm (4'10" - 6'5")
MAX LOAD WEIGHT: 105 kg (230 lb)
MAX GROSS VEHICLE WEIGHT: 125 kg (275 lb)
MAX RIDER WEIGHT: 105 kg (230 lb)

FRAME: Tern Vektron, hydroformed 7005-AL, OCL joint, 3 patented technologies

FORK: Tern Tarsus, 6061-Al, hydroformed

HANDLEPOST: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm

STEM: Tern Andros, adjustable, forged construction, patented technology

HEADSET: Tern Flux, cartridge bearings, Physis integrated

HANDLEBAR: Flat bar, 6061-AL, Tern Andros adapted

GRIPS/BAR TAPE: Velo ergonomic, lock-on

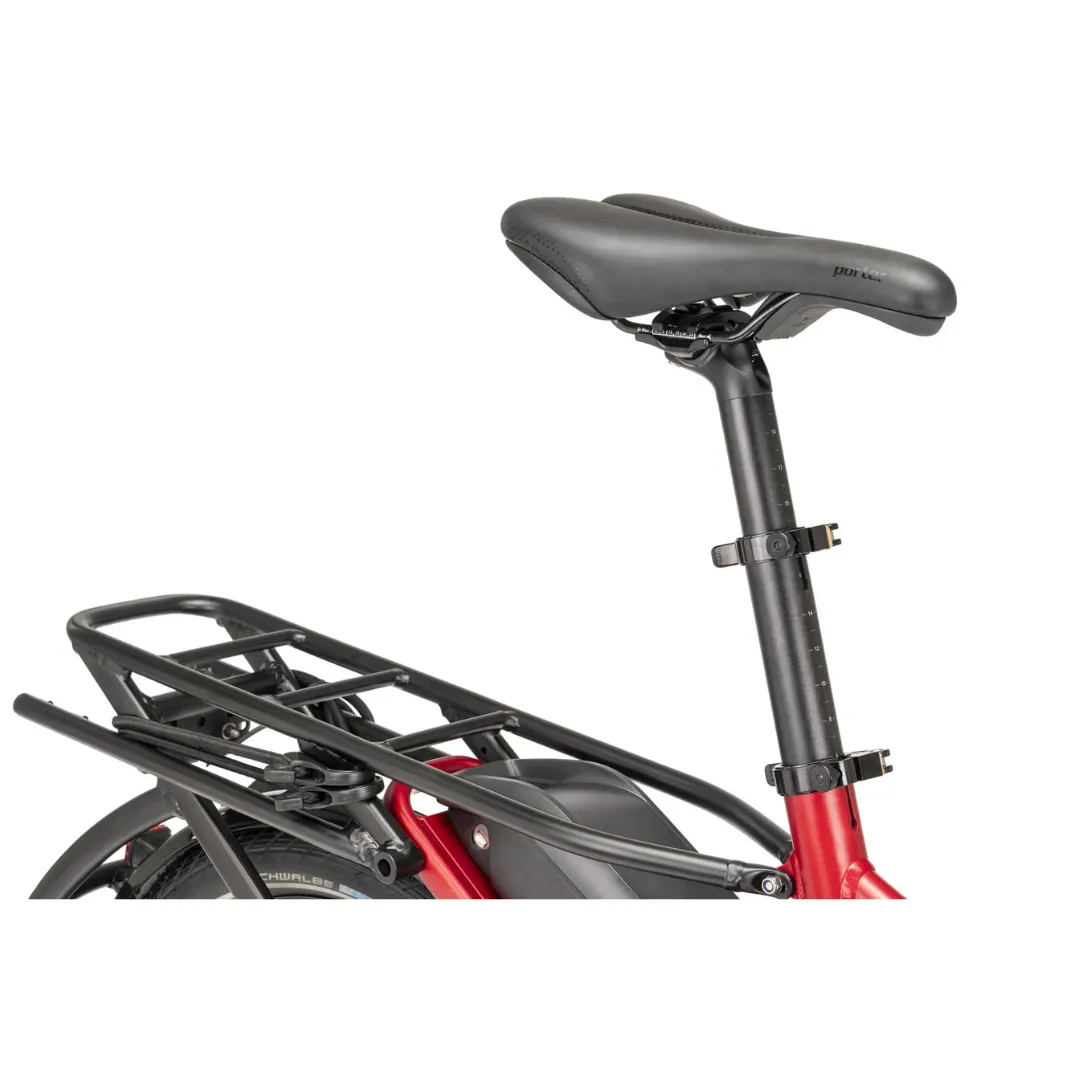

SADDLE: Tern Porter, patented GripPad design

SEATPOST: Tern Telescope, 34.9/30.9 mm, 2014-AL

SEATPOST CLAMP: Tern Collar, 6061-AL, 2pc

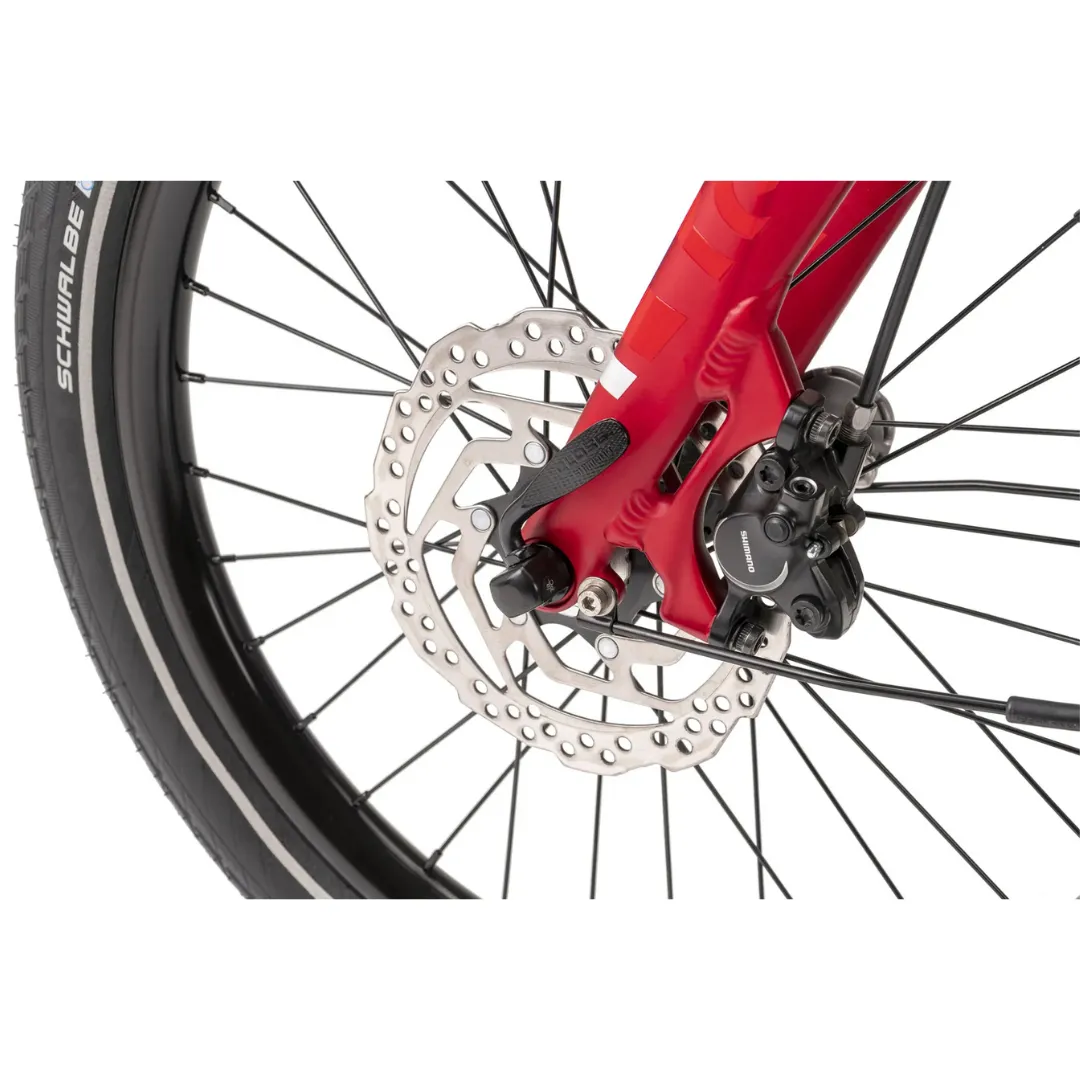

BRAKES: Shimano, hydraulic disc

WHEELS

FRONT HUB: Shimano disc

REAR HUB: Shimano disc

SPOKES AND NIPPLES: Stainless steel

RIMS: Kinetix Comp, for disc

TIRES: Schwalbe Big Apple, 55-406, puncture protection, Reflex

TRANSMISSION

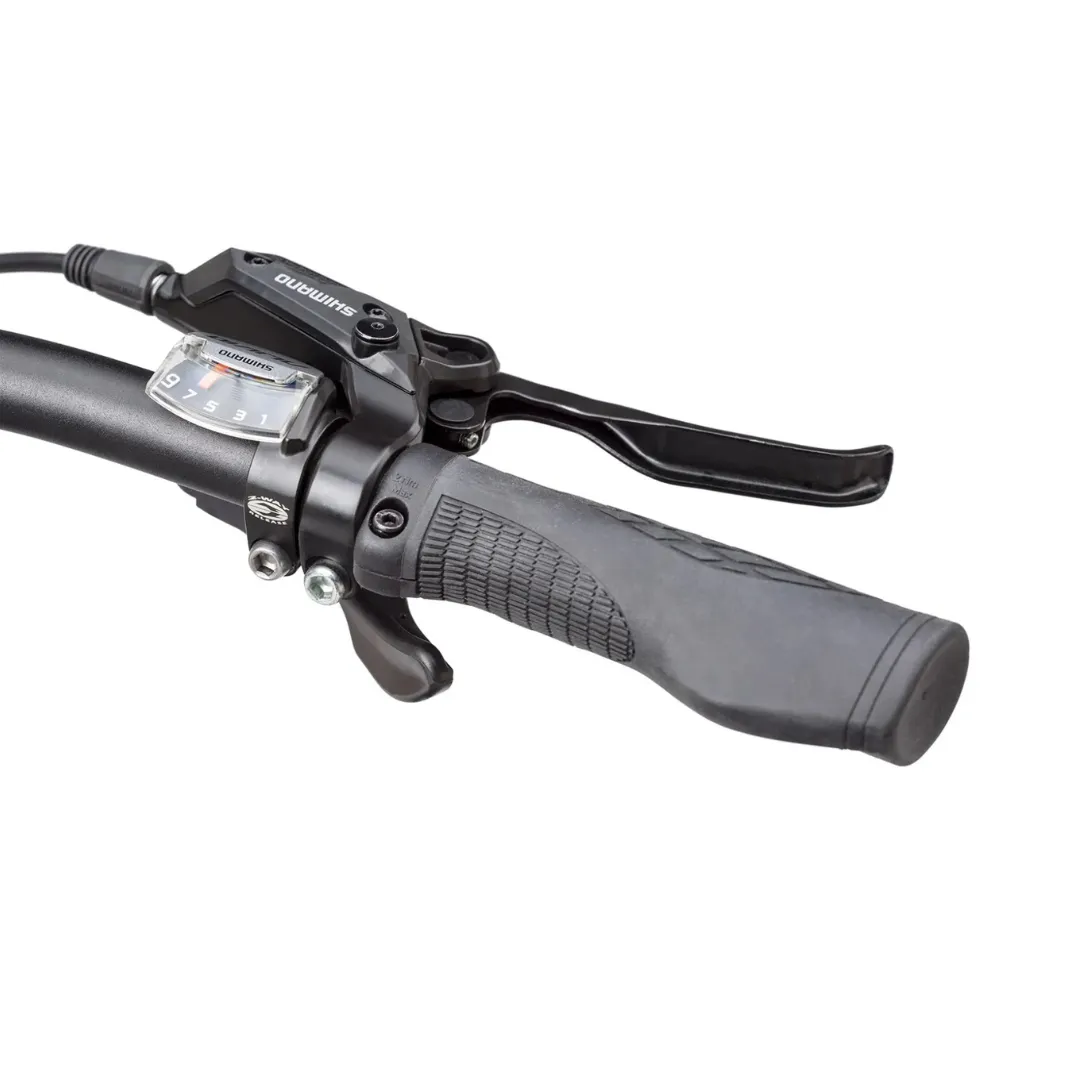

SHIFTER(S): Shimano Alivio, 1 x 9 spd, trigger

REAR DERAILLEUR: Shimano Alivio Shadow

CRANKSET: Vektron custom, forged 6061-AL crankarm

CASSETTE/FREEWHEEL: Shimano 11-32T, 9 spd

BOTTOM BRACKET: Motor integrated

CHAIN: 9 spd, DHT for eBike, GST corrosion resistant coating

PEDALS: MKS EZY

SHIFTER CABLE & HOUSING: Jagwire LEX-SL, slick treatment, alloy ferrules

E-SYSTEM

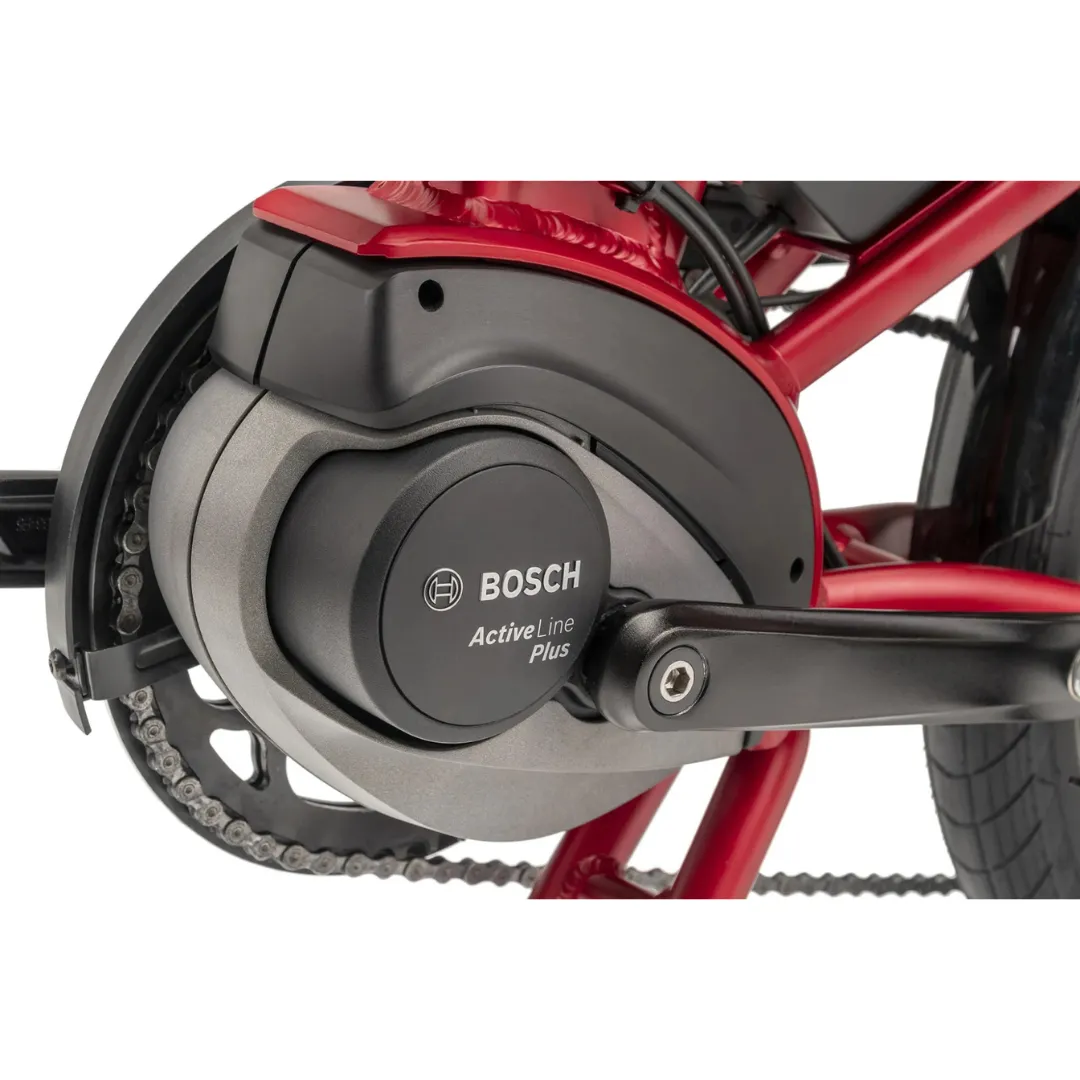

MOTOR: Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)

BATTERY: Bosch PowerPack 400 Wh

DISPLAY: Bosch Purion, 4 mode selectable, walk assist

RANGE: 400 Wh: 55 -110 km (35-70 mi)

CHARGER: 220V, 4A (EU); 100-240V, 4A (US)

BELLS & WHISTLES

BELL: Aluminum

CHAINGUARD: SKS Chainblade

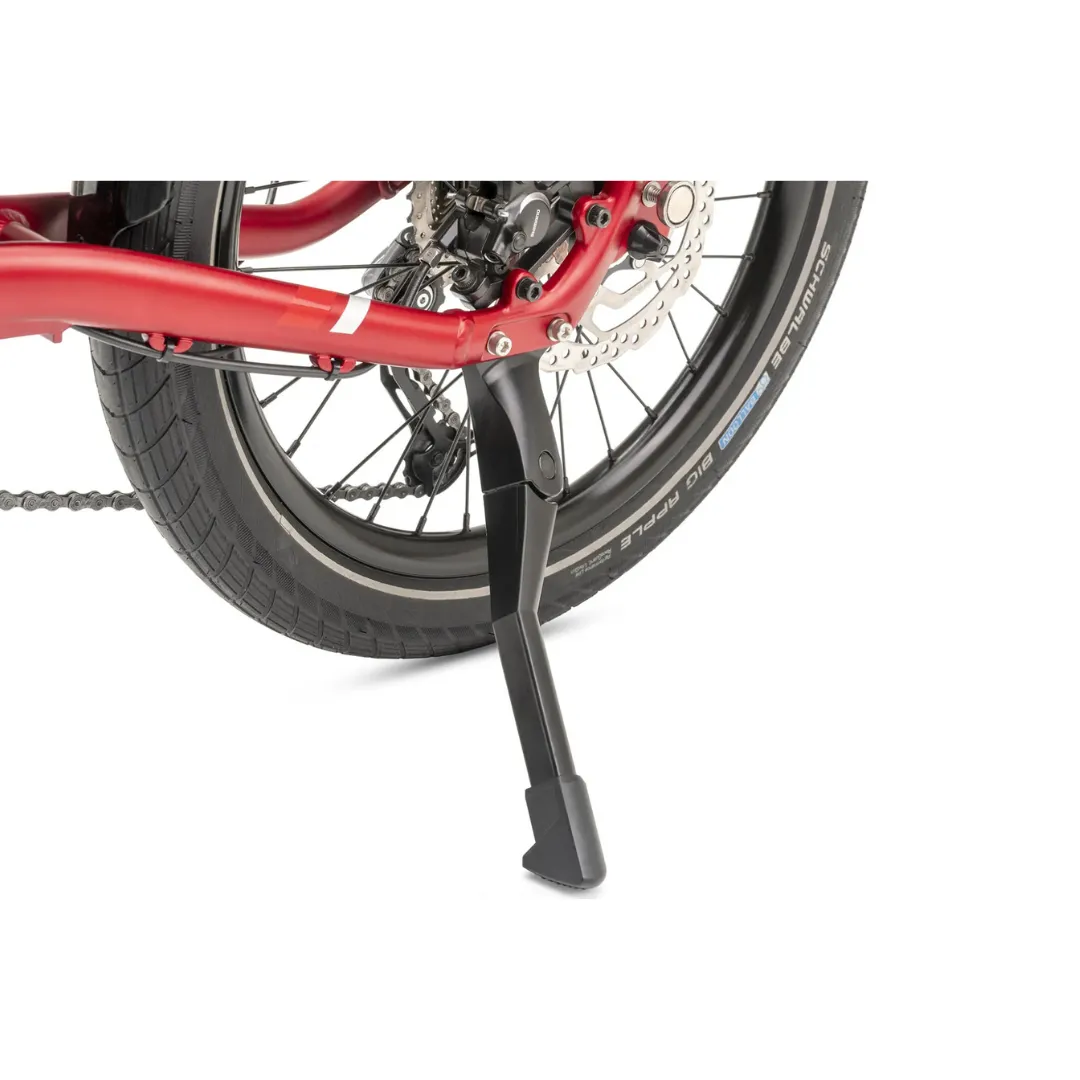

KICKSTAND: URSUS, rear mount

CLIP SYSTEM: Magnetix 3.0

LUGGAGE SOCKET: Yes

FRONT LIGHT: Tern Valo Direct, 190 lumens

REAR LIGHT: Herrmans H-Trace, for eBike

FENDERS: SplashGuard, stainless hardware

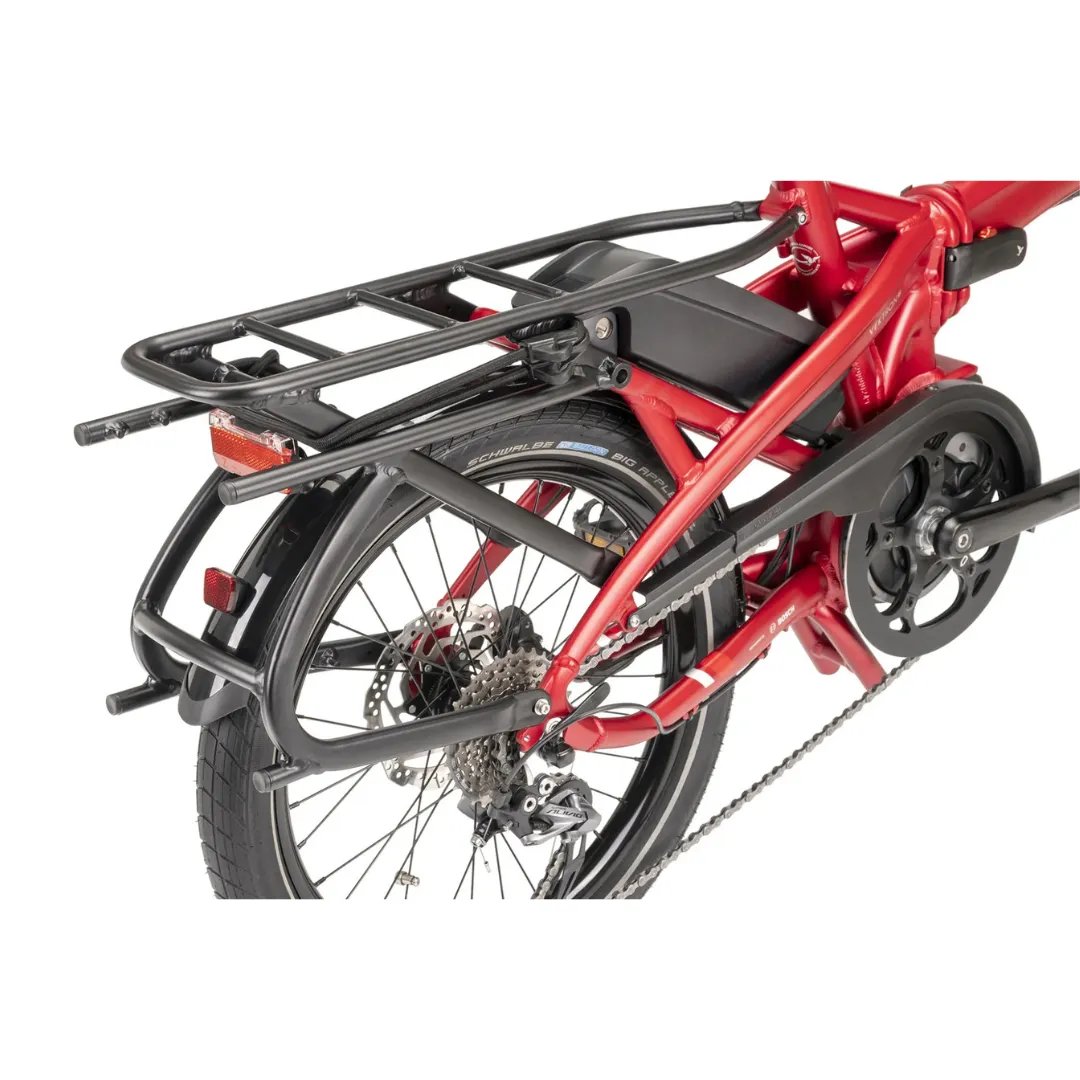

RACK(S): Atlas V Rack, integrated 8 point mounting, max load capacity 27 kg (59 lb)

SIZING

One Size Fits Most

The Vektron has a low-step frame design and resizes in seconds—no tools required—to fit riders between 145 and 195 cm (4’10” – 6’5”), so you can share the bike with anyone in your family.
