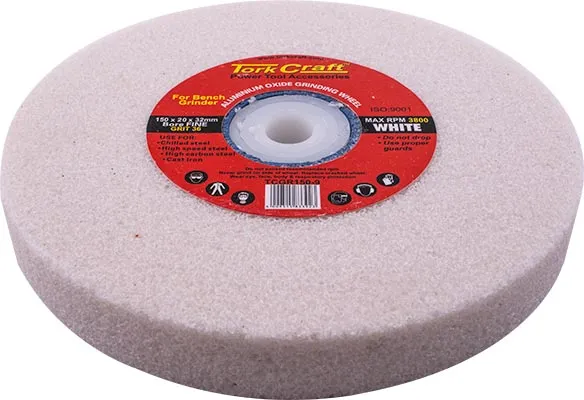

For use with bench grinders to grind all tempered and hardened steel.
DIAMETER: ø150mm
WIDTH: 20mm
BORE: Ø32mm
GRIT: 36
ABRASIVE: Aluminium oxide
MAX RPM: 3800
Application:
High quality aluminium oxide abrasives
bonded and precision engineered to maximize cut rate, wheel life and finish
on High Speed Steel (HSS), High Carbon Steel (HCS), cast iron and chilled
steel.
Used for offhand grinding tempered and hardened steel.
- Do not exceed recommended rpm.
- Never grind on side of wheel.
- Replace cracked wheel.
- Wear eye, face, body and respiratory protection.
Grinding wheel supplied with bushes to accomodate other bench grinder shaft diameters.
A bench grinder is a machine that is attached to a bench. It usually has two grinding wheels, both of them normally of different grits. For example a 60 grit and a 36 grit. One for stock removal and the other made for touching up tools.
Although a bench grinder is generally a shop tool, there are some designed for home use. These machines are not normally used for precision grinding. The outcome is usually coarse, even with a wheel considered for fine grinding.
Further grinding may be necessary with a different type of grinding machine.
Bench grinding wheels are mostly made of aluminium oxide that consistantly renews itself when in use. It also has a redused chance of overheating and clogs less frequently. The disadvantage is that these wheels may need to be replaced more often.
Differences between machines: Some bench grinders are smoother and quieter
running than others. Some machines might have adjustable speed to prevent
overheating. The tool rests might also vary from having a V-grooved to an angled
toolrest to allow the grinding of drill bits etc.
TCGR150-9Abrasive/Grinding/Polish > Grinding Wheel Machine > Stainless Steel
