Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | S2620137 |
| Body Style | Rectangular |
| Cable Length | 2 m |
| Connection Type | Cable 3-Wire |
| Current, Switching | 200 mA |
| Frequency, Switching | 100 Hz |
| Housing Material | Plastic |
| IP Rating | IP67 |
| Maximum Operating Temperature | 70 C |
| Measurement Range | 10 mm |
| Minimum Operating Temperature | -25 C |
| Mounting Type | Bracket/Panel Flush |
| Operating Temperature, Maximum | 70 C |
| Operating Temperature, Minimum | -25 C |
| Output | NPN-NO |
| Primary Type | Capacitive Proximity Sensors |
| Sensing Mode | Capacitive |
| Series | |
| Shielding | Shielded |
| Supply Voltage | 10-30 VDC |
| Type | Capacitive |
Overview

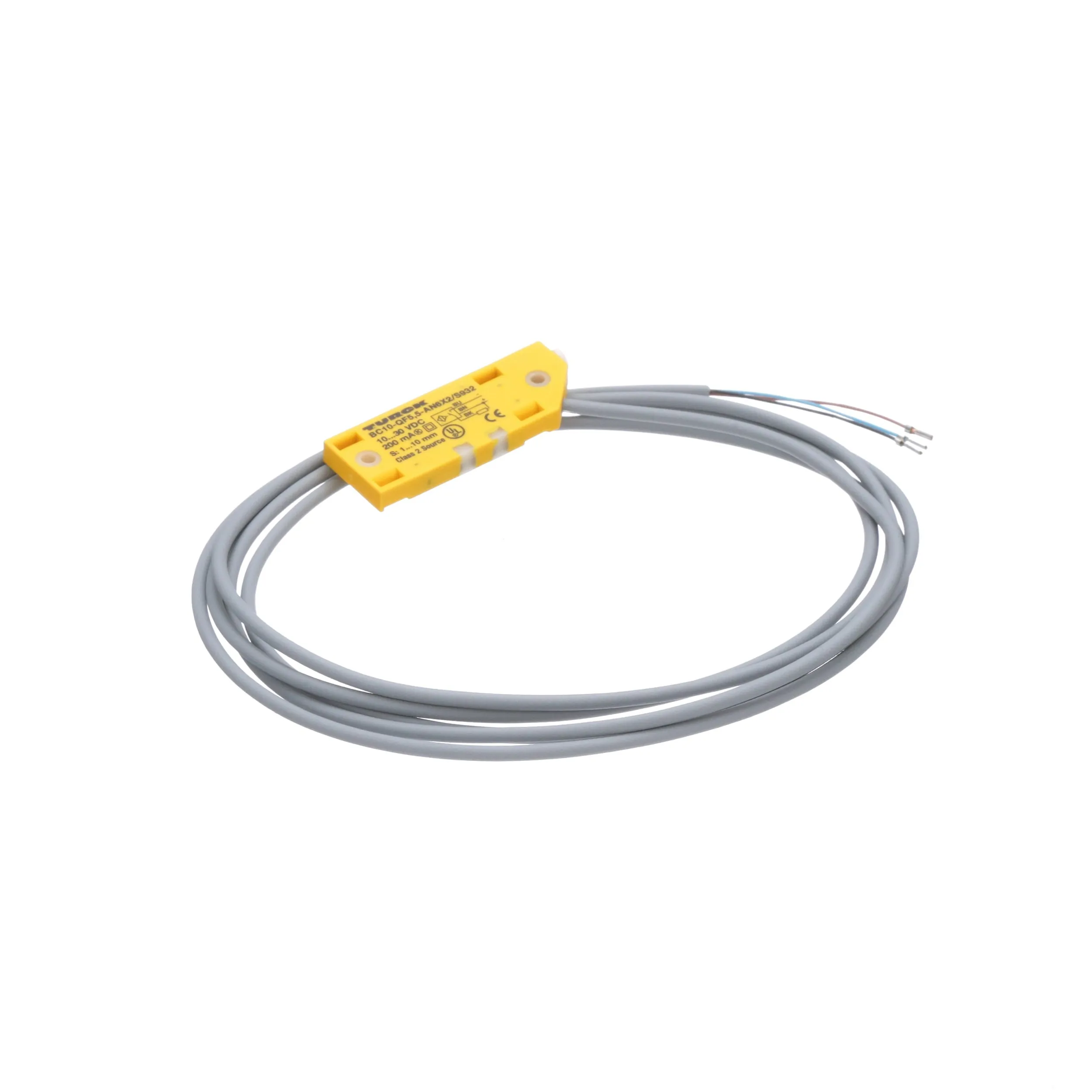

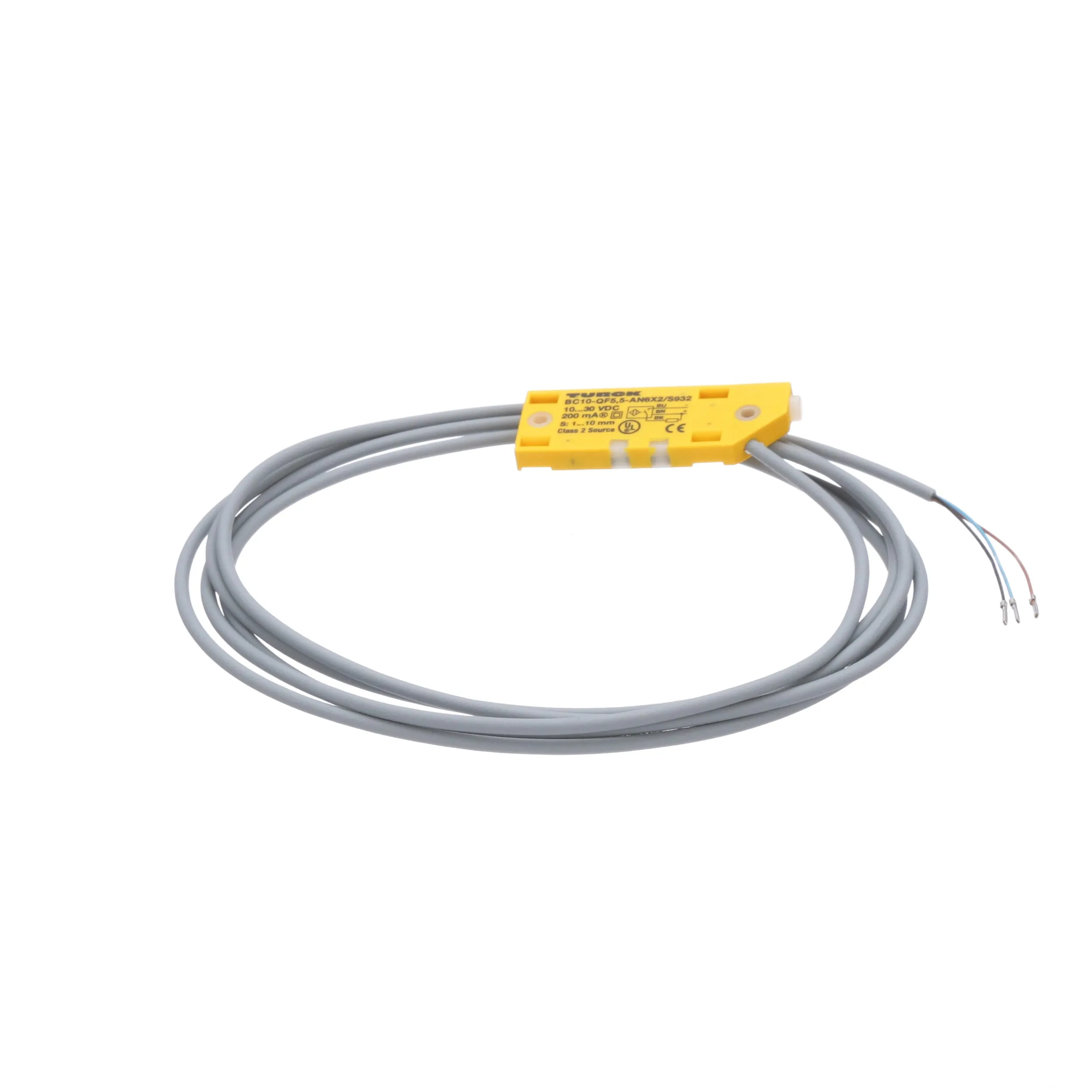

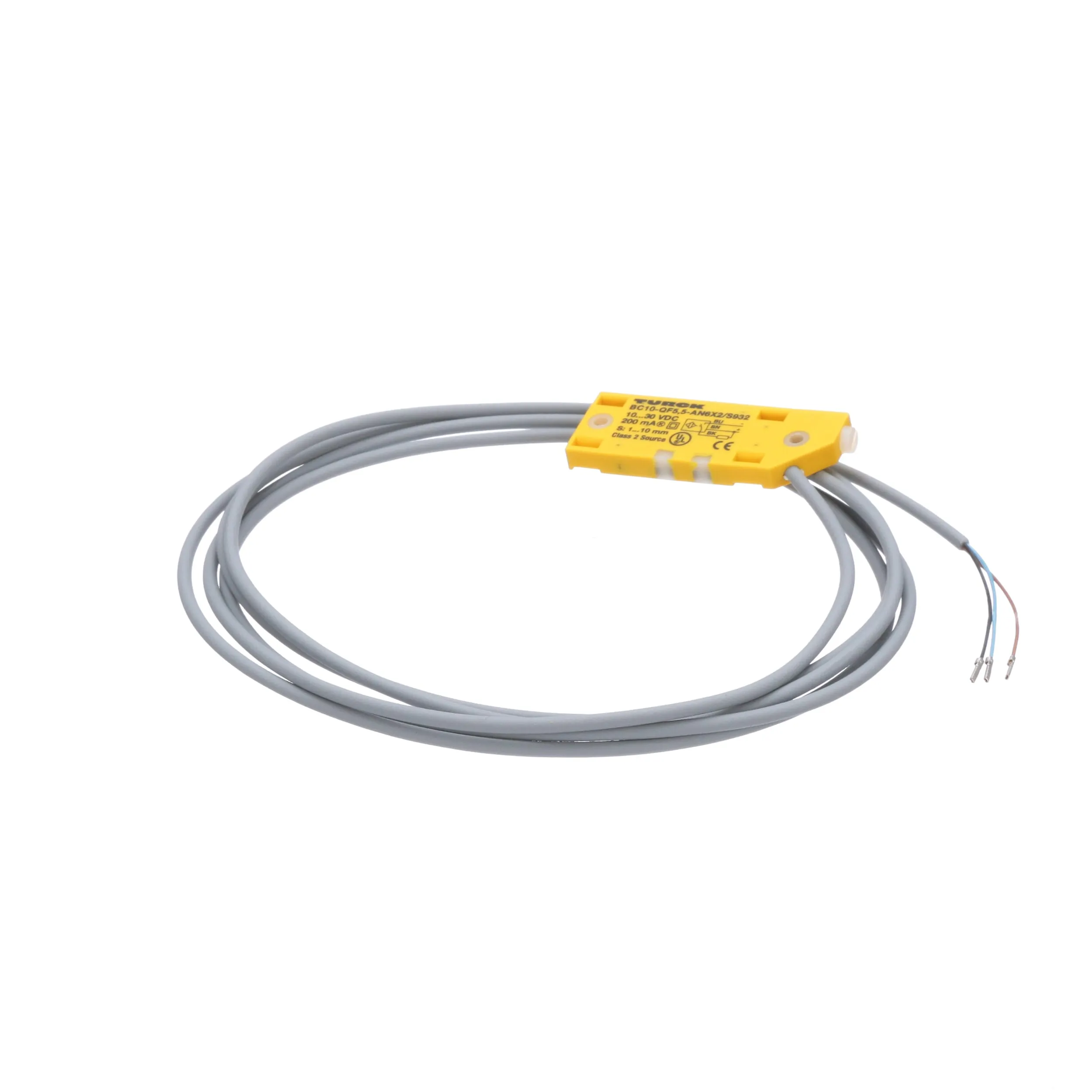

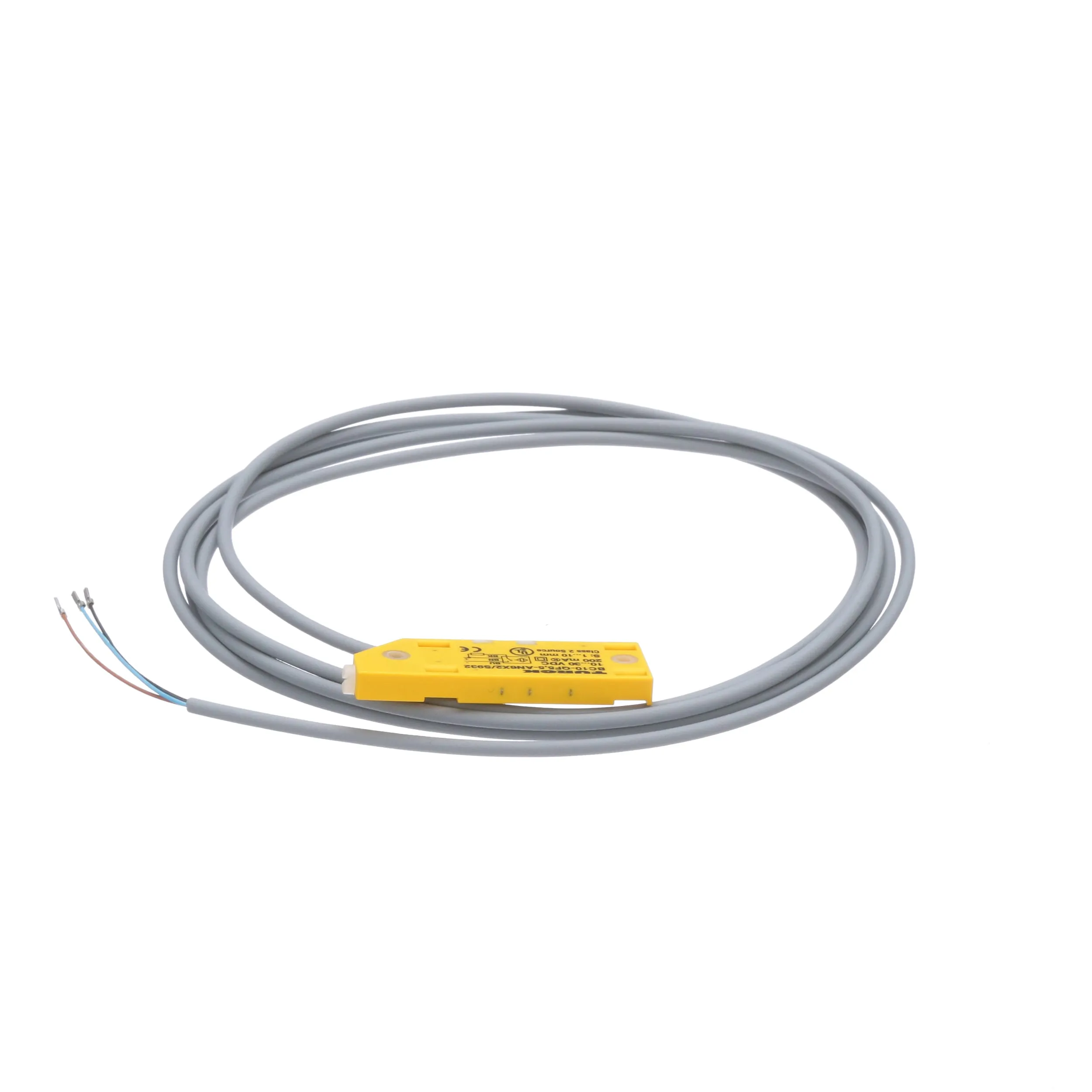

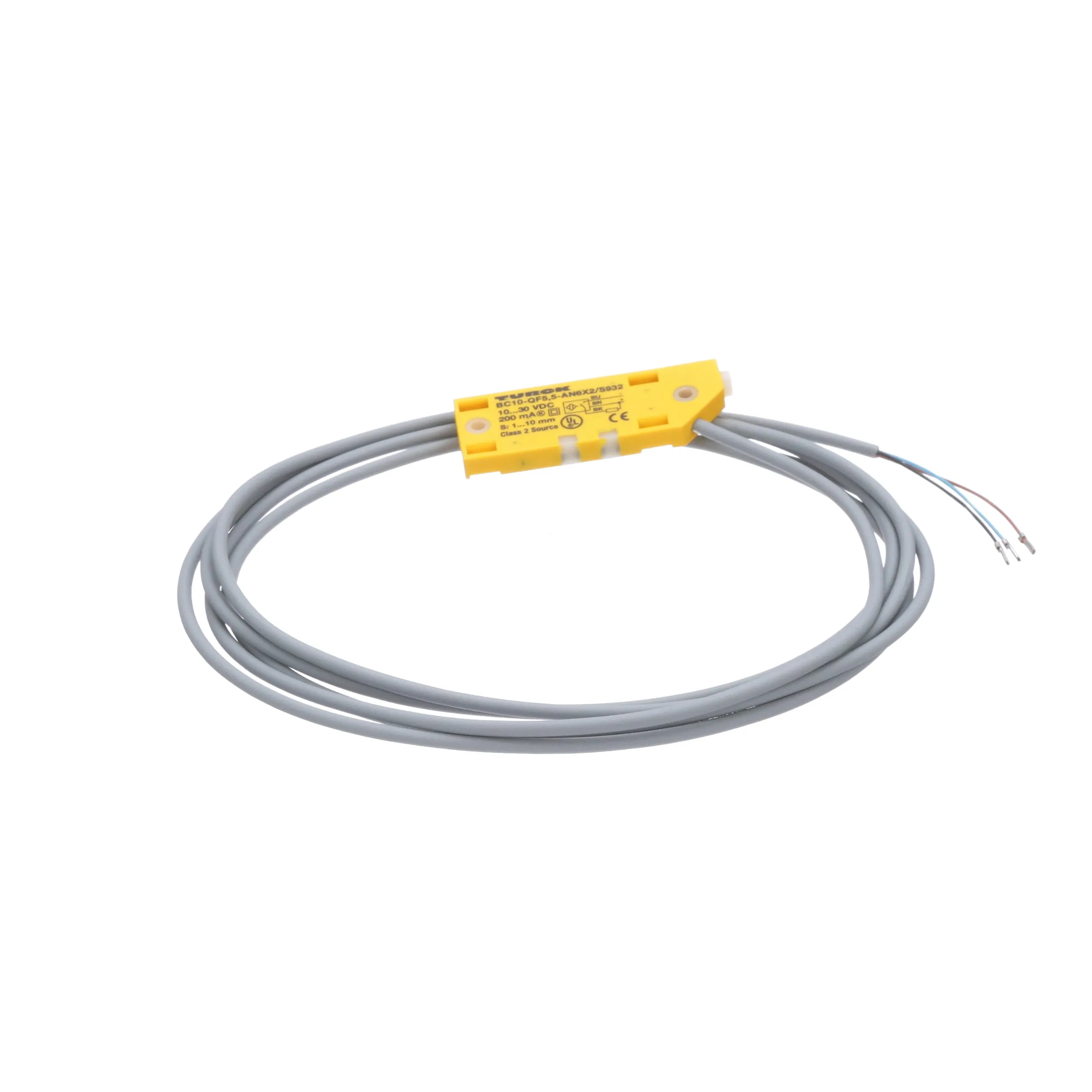

BC Series Flat Rectangualr Body
Turck Banner BC series capacitive sensors with flat rectangular design are a compact solution for a wide variety of applications. The rugged housing and high quality components offer simplified assembly and enhance the operability.
